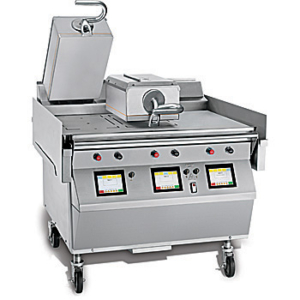

Taylor L813 Gas Lower Cook Surface / Electric Upper Platens Two-Sided Grill Features
One touch menu selection automatically provides accurate TIME, TEMPERATURE, and GAP settings for every product.
Microprocessor controls are programmable for simplified operator operation. Offers flexibility for future menu items and product specification changes at the restaurant level.
External USB Port
External USB port allows user access to upload new menu and promotional items. Menu changes can be sent electronically to other store locations, saving time and eliminating operator error.
Two upper platens will close automatically to the preset gap setting with the touch of one button. Air cylinder system provides quiet, simple, trouble-free operation of the upper platen. As a safety feature, platen will automatically open at loss of power, or if an obstruction is detected.
Precise Automatic Gapping
Solid platform with 3-point reference plane and fixed (home) reference point. Once programmed, the upper platen automatically achieves accurate and consistent gaps, every time. Precise, repeatable gapping assures product safety and better quality finished product.
Three separately controlled cooking zones. Three independent controlled gas infra-red burners heat the lower cook surface. Each upper platen contains two independenty controlled electric heating elements. Together these thermal systems provide even plate temperatures and quick recovery.
Side-To-Side Release Material
Protects entire upper platen cooking surface and makes cleaning easy. Improved installation and removal process away from hot surfaces.
Patty Cook Position Placement Guide
Lower cooking surface is etched for a permanent patty placement guide for two-sided cooking.
Taylor L813 Gas Lower Cook Surface / Electric Upper Platens Two-Sided Grill Specifications
One dedicated electrical connection is required. See the Electrical chart for the proper electrical requirements. Consult your local Taylor distributor for receptacle specifications as local codes allow.
Three ceramic infrared burners; 25,000 BTUH each. Manifold pressure; 3.5” w.c. natural; 10.5” w.c. propane
Flue deflector and restraining cable 3/4″ Flexible gas inlet hose, with female fitting connection for ½” pipe thread on grill and female fitting for 1″ pipe thread at wall
- Cleaner (1qt)
- Grease cans (two, mount on each side)
- Release sheets; includes clips and retainer (one box of 9)
- Squeegee (one)
- Cleaning Pads (10 qty.)
- Cleaning Pad Holder
- Gap Gage (0.255)
- Grill Scraper
- Tool Holder
