Model 8752

Taylor-logo

Offer all the popular soft serve variations from low or non-fat ice creams to custards, yogurt and sorbet.

For more information, call us at 1-800-768-6945 or

Send us an Email Now

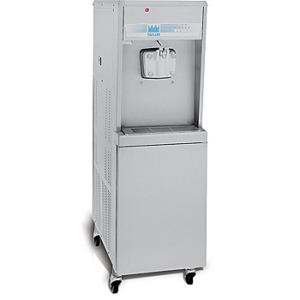

Taylor 8752 Soft Serve Freezer Single Flavor, Pump Features

Offer all the popular soft serve variations from low or non-fat ice creams to custards, yogurt and sorbet.

Freezing Cylinder

One, 3.4 quart (3.2 liter).

Refrigerated Mix Storage Cabinet

Lower front mix cabinet is independently refrigerated to maintain mix below 41ºF (5ºC). Door is hinged on the right. One, 15 gallon (57.0 liter) mix tank. Air/mix pump delivers the precise amount of air and mix to the freezing cylinder.

Indicator Lights

Mix Low light alerts the operator to add mix. When the Mix Out light flashes, the unit shuts down automatically to prevent damage.

Electronic Controls

Finished product quality is monitored by SoftechTM controls that measure viscosity.

Standby

During long no-use periods, the Standby feature maintains safe product temperatures in the freezing cylinder.

Taylor 8752 Specifications

Electrical

One dedicated electrical connection is required. See the Electrical chart for the proper electrical requirements. Manufactured to be permanently connected. Consult your local Taylor distributor for cord & receptacle specifications as local codes allow.

Beater Motor

One, 1.5 HP.

Refrigeration System

One, 9,500 BTU/hr. R404A.

Mix Cabinet Refrigeration, One, 1,100 BTU/hr. R404A. (BTUs may vary depending on compressor used.)

Air Cooled

Minimum 3” (76 mm) around all sides and 12” (305 mm) on top. Minimum air clearances must be met to assure adequate air flow for optimum performance.

Water Cooled

Water inlet and drain connections under side of base 3/8” FPT.

Taylor 8752 Options

  • Cone Dispenser
  • Draw Valve Lock Kit
  • Panel Spinner
  • Sneeze Guard
  • Syrup Rail Kit (side mount)
