Model c722

Taylor-logo

Offer all the popular soft serve variations from low or nonfat ice creams to custards, yogurt and sorbet. Serve two separate soft serve flavors, or an equal combination of both in a twist.

 Download Specifications

For more information, call us at 1-800-768-6945 or

Send us an Email Now

Taylor C722 Soft Serve Freezer Twin Twist, Pump Features

Offer all the popular soft serve variations from low or nonfat ice creams to custards, yogurt and sorbet. Serve two separate soft serve flavors, or an equal combination of both in a twist.

Freezing Cylinder

Two, 2.8 quart (2.7 liter).

Mix Hopper

Two, 14 quart (13.2 liter). Separate hopper refrigeration (SHR) maintains mix below 41ºF (5ºC) during Auto and Standby modes.

Indicator Lights

Digital readout displays hours since last brush cleaning to assure product safety. Mix Low light alerts operator to add mix. Audible alarm may be

enabled to sound when mix is low. When the Mix Out light flashes, the unit shuts down automatically to prevent damage.

Touch Screen Controls

Microprocessor touch controls are embedded in durable tempered glass panel. Multiple languages are selectable. Viscosity is continually measured to dispense consistent quality soft serve desserts. Temperatures in the hoppers or freezing cylinders may be displayed at any point of operation, in either Fahrenheit or Celsius. Draw counter allows operator to view number of servings dispensed.

Standby

During long no-use periods, the standby feature maintains safe product temperatures in the mix hopper and freezing cylinder.

Door Interlock System

Protects the operator from injury as the beater will not operate without the dispensing door in place.

Freezer Door

A specially designed thermo-plastic door allows quick ejection of product with a simple movement of the draw handle. Self closing draw handles are standard.

Taylor C722 Soft Serve Freezer Twin Twist, Pump Specifications

Electrical

One dedicated electrical connection is required. See the Electrical chart for the proper electrical requirements. Manufactured to be permanently connected. Consult your local Taylor distributor for cord & receptacle specifications as local codes allow.

Beater Motor

Two, 1.0 HP.

Refrigeration System

One, 9,500 BTU/hr. R404A.

Separate Hopper Refrigeration (SHR), One, 400 BTU/hr. R134a. (BTUs may vary depending on compressor used.)

Air Cooled

Minimum 6” (152 mm) on both sides. It is recommended to place the rear of the unit against a wall, or allow 6” clearance (152 mm) at the rear. Optional air discharge chute directs heated air exhaust upwards; minimum clearance above top air discharge chute is 12” (305 mm). No clearance required on right side if air discharge chute is used.

Water Cooled

Water inlet and drain connections out rear panel 3/8” FPT.

Taylor C722 Soft Serve Freezer Twin Twist, Pump Options

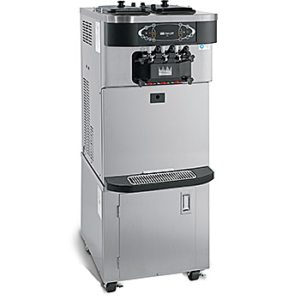

  • Standard Cart with casters and a door (shown) Net Weight: 74 lbs. (33.6 kg) Crated Weight: 95 lbs. (43.1 kg)
  • ADA Cart with casters – recommended for self service to meet ADA compliant dispensing height – no door (see C722 ADA spec. sheet) Net Weight: 74 lbs. (33.6 kg) Crated Weight: 87 lbs. (39.5 kg)
  • Drain Adaptor (for ease of rinsing & cleaning)
  • Draw handles to comply with ADA force requirement
  • Draw Valve Lock Kit
  • Hopper Locks
  • Hopper Agitators
  • Legs – [increase height of unit by 4-1/4” (108 mm)]
  • Decals – Twist or Flavor Burst Cone
  • Top Air Discharge
