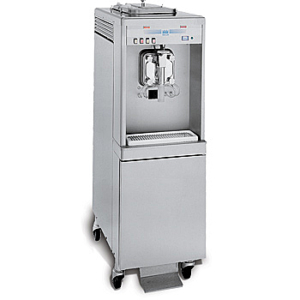

Taylor 60 Shake Freezer Four Flavor Features
Offer four separate shake flavors: chocolate, strawberry, vanilla (unflavored shake mix) and an optional flavor.
One, 7 quart (6.6 liter).
One, 20 quart (18.9 liter). Separate hopper refrigeration (SHR) maintains mix below 41ºF (5ºC).
Add Mix light alerts the operator to add mix. When the Mix Out light flashes, the unit automatically shuts down to prevent damage.
Accurate Consistency Control
Torque control precisely maintains superior shake quality in texture, viscosity and taste.
Shake Syrup System
Shake flavors are selected from push buttons. Self-contained air compressor delivers shake syrup from three, 1 gallon (3.8 liter) syrup tanks located in the lower front compartment. Use only single strength syrup, free from pulp and seeds.
Press the desired flavor button, and either raise the draw handle or use the foot pedal for hands free dispensing. Frozen shake mix and syrup automatically blends to dispense the chosen flavor. Press the Rinse button to eliminate flavor carryover. Rinse water connection under unit is 3/8” FPT.
Taylor 60 Specifications
One dedicated electrical connection is required. See the Electrical chart for the proper electrical requirements. Manufactured to be permanently connected. Consult your local Taylor distributor for cord & receptacle specifications as local codes allow.
One, 1.0 HP
One, 11,000 BTU/hr. R404A.
Separate Hopper Refrigeration (SHR), One, 400 BTU/hr. R134a. (BTUs may vary depending on the compressor used.)
Minimum Clearance: 6” (152 mm) on all sides. Minimum air clearances must be met to assure adequate air flow for optimum performance.
Water inlet and drain connections under side of base 3/8” FPT.
- Hopper Locks
- Panel Spinner
- Magnetic Self Service Decal
