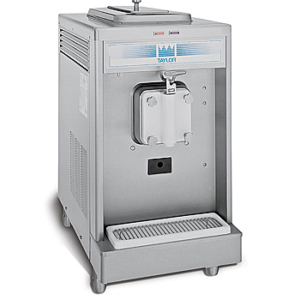

Taylor 490 - Shake Freezer Single Flavor

Taylor-logo

With the Taylor 490, you can serve a wide variety of frozen beverages, like shakes and smoothies, with the assurance of safe temperatures for dairy products. Direct draw a single flavor, or blend in flavorings for more variety.

For more information, call us at 1-800-768-6945 or

Send us an Email Now

Taylor 490 Shake Freezer Single Flavor Features

Serve a wide variety of frozen beverages, like shakes and smoothies, with the assurance of safe temperatures for dairy products. Direct draw a single flavor, or blend in flavorings for more variety.

Freezing Cylinder

One, 7 quart (6.6 liter).

Mix Hopper

One, 20 quart (18.9 liter). Refrigerated to maintain mix below 41ºF (5ºC).

Indicator Lights

Add Mix light alerts the operator to add mix. When the Mix Out light flashes, the unit automatically shuts down to prevent damage.

Electronic Viscosity Control

The electronic viscosity control continuously measures product viscosity and regulates operation of the refrigeration system.

Taylor 490 Specifications

Electrical

One dedicated electrical connection is required. See the Electrical chart for the proper electrical requirements. Manufactured to be permanently connected. Consult your local Taylor distributor for cord & receptacle specifications as local codes allow.

Beater Motor

One, 0.5 HP

Refrigeration System

One, 7,500 BTU/hr. R404A.

(BTUs may vary depending on compressor used.)

Air Cooled

Minimum Clearance: 6” (152 mm) on both sides. It is recommended to place the rear of the unit against the wall to prevent recirculation of warm air. Minimum air clearances must be met to assure adequate air flow for optimum performance.

Water Cooled

Water inlet and drain connections under side of base 3/8” FPT.

Options

  •      Faucet
  •      Panel Spinner
  •      Syrup Rail (side mount)
