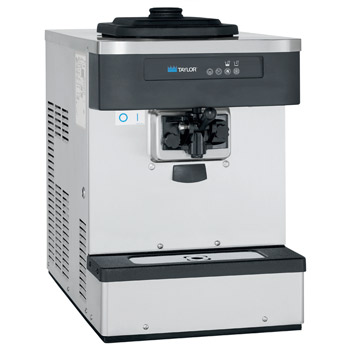

Taylor C152 Soft Serve Freezer Single Flavor Machine

Taylor-logo

The Taylor C152 offers all the popular soft serve variations from low or nonfat ice creams to custards, yogurt and sorbet.

For more information, call us at 1-800-768-6945 or

Send us an Email Now

Taylor C152 Soft Serve Freezer Single Flavor Features

Offer all the popular soft serve variations from low or non-fat ice creams to custards, yogurt and sorbet.

Freezing Cylinder

One, 1.5 quart (1.4 liter).

Mix Hopper

One, 8 quart (7.6 liter). Separate hopper refrigeration (SHR) maintains mix below 41ºF (5ºC) in Auto and Standby modes.

Indicator Lights

The Mix Low and Mix Out light alerts the operator to add mix. An audible alarm may be enabled to sound when mix is low.

Electronic Controls

Softech™ is our exclusive microprocessor based master control that regulates refrigeration by measuring product viscosity to maintain consistent quality.

Standby

During long no-use periods, the standby feature maintains safe product temperatures in the mix hopper and freezing cylinder.

Door Interlock System

Protects the operator from injury as the beater will not operate without the dispensing door in place.

Taylor C152 Soft Serve Freezer Specifications

Electrical

One dedicated electrical connection is required. See the Electrical chart for the proper electrical requirements. Manufactured to be cord connected. Consult the international Taylor distributor for cord & receptacle specifications for 50 Hz. equipment.

Beater Motor

One, 0.5 HP

Refrigeration System

One, 3,000 BTU/hr. R404A. Separate Hopper Refrigeration (SHR), One, 400 BTU/hr. R134A. (BTUs may vary based on application)

Air Cooled

Minimum 4″ (102 mm) on both sides. Minimum air clearances must be met to assure adequate air flow for optimum performance.

Options

  • Cone Dispenser
  • 4″ Legs (Must install skirt on right side of unit to prevent recirculation of warm air)
