Slush FCB Equipment

Magnablend

2020-04-08T22:52:15-04:00October 24th, 2016|Categories: Magnablend, Milkshake, Slush FCB Equipment|

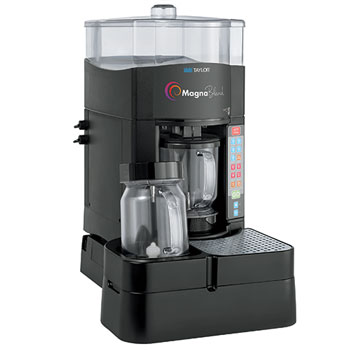

Magnablend

Magnablend-logo
Engineered to drastically increase service speed, the MagnaBlend Frozen Blended Beverage Station boasts a blink-and-you’ll-miss-it — 9-second blend time. And that’s not all. The integrated shaved ice dispenser and rinse station mean there’s no need to move back and forth between separate prep areas. Simply blend, rinse and repeat.

 Download Specifications

For more information, call us at 1-800-768-6945 or

Send us an Email Now

Model C303 – Frozen Carbonated Beverage Freezer – Three Flavors

2020-08-01T11:51:14-04:00August 15th, 2016|Categories: Slush FCB Equipment|

Model C303

Taylor-logo

Dispense a light, fluffy, high overrun slush product in a pressurized system from this Taylor C303 modular, counter-top freezer. Optional nonpressurized system produces a wetter, lower overrun slush. Air is discharged out the top of the unit to accommodate tight counter space. Optional cart converts the unit to a self-contained floor model, and provides storage for the syrup.

Download Specifications

For more information, call us at 1-800-768-6945 or

Send us an Email Now

Taylor C303 Frozen Carbonated Beverage (FCB) Freezer Three Flavors Features

Dispense a light, fluffy, high overrun slush product in a pressurized system from this modular, counter-top freezer. Optional nonpressurized system produces a wetter, lower overrun slush. Air is discharged out the top of the unit to accommodate tight counter space. Optional cart converts the unit to a self-contained floor model, and provides storage for the syrup.

Freezing Cylinder

Three, 7 quart (6.6 liter).

Dispensing Door

Clear plastic dispensing doors allow customers to see slush being made. Self closing draw handles are standard. Round dispensing nozzle conveniently fits the hole in domed lids.

Indicator Lights/Audible Alarm

Lights illuminate and audible alarm sounds to indicate loss of CO2, water or syrup on the affected freezing cylinder. The other flavors will continue to operate when one loses syrup. A snooze feature may be activated to silence the alarm for 30 minutes.

Automatic Defrost

Programmable defrost cycles allow the operator to select the time and frequency for defrosting each freezing cylinder independently. The defrost light flashes to warn customers not to draw product from the side that is being defrosted. At the end of the defrost cycle, the freezing cylinder automatically returns to the freeze-down mode.

Power Saver

During extended no-use periods, the Power Saver feature may be programmed for either Standby or Rest Mode. Standby Mode maintains product in freezing cylinder between 35 & 40°F (1.6 & 4.4°C) for quickest return to serving product. Rest Mode shuts down the refrigeration system for the most energy savings. Start and end times may be programmed independently for seven cycles.

Sure SetTM Flow Control

Automatically maintains brix settings by compensating for fluctuations in water, CO2, and syrup pressures. Water flow is preset at the factory.

Electronic Viscosity Control

SlushtechTM is standard with our exclusive microprocessor based universal control which regulates refrigeration by measuring product viscosity.

Air Filter

Removable, cleanable air filter helps keep condenser clean for optimal refrigeration system performance.

Merchandising

LED display backlights translight and illuminates clear dispensing doors to draw customer attention. This display provides energy efficient, even, consistent lighting.

Preventative maintenance programs are available through your local Taylor distributor.

Continuing research results in steady improvements; therefore, these specifications are subject to change without notice.

Taylor C303 Frozen Carbonated Beverage (FCB) Freezer Specifications

Electrical

One dedicated electrical connection is required. See the Electrical chart for the proper electrical requirements. Manufactured to be permanently connected. Consult your local Taylor distributor for cord & receptacle specifications as local codes allow.

Beater Motor

Three, 1/6 HP.

Refrigeration System

One, 18,000 BTU/hr compressor (nominal rating). R404A.

(Actual BTUs will vary based on application.)

Carbonation System

Dedicated remote carbonation system. Syrup, CO2(1/4” MFL) and water (3/8” MFL) fittings connect at the rear of the machine. Requires separate 115 volt, 60Hz, 1 phase electrical connection, NEMA 515P.

Potable Water Pressure

Minimum 25 PSI for proper operation of carbonation system.

Air Cooled

Minimum Clearance: 3” (76 mm) around all sides, and 12” (305 mm) on the top of the unit. Minimum air clearances must be met to assure adequate air flow for optimum performance.

Water Cooled

Water inlet and drain connections at rear 3/8” FPT provided.

Taylor C303 Frozen Carbonated Beverage (FCB) Freezer Options

  • Syrup Tank Fittings
  • Syrup Storage Cart: Includes shelves for storing BIB FCB syrups and mounting BIB pumps (not included).

Dimensions

Width: 23-1/8” (587 mm)

Depth: 35” (889 mm)

Two Heights Available: 32-1/8” (816 mm) or 25-1/2” (648 mm)

Model C302 – Frozen Carbonated Beverage Freezer – Four Flavors

2020-08-01T12:02:21-04:00August 15th, 2016|Categories: Slush FCB Equipment|

Model c302

Taylor-logo

Dispense a light, fluffy, high overrun slush product in a pressurized system from this Taylor C302 modular, counter-top freezer. Optional nonpressurized system produces a wetter, lower overrun slush. Air is discharged out the top of the unit to accommodate tight counter space. Optional cart converts the unit to a self-contained floor model, and provides storage for the syrup.

Download Specifications

For more information, call us at 1-800-768-6945 or

Send us an Email Now

Taylor C302 Frozen Carbonated Beverage (FCB) Freezer Four Flavor Features

Dispense a light, fluffy, high overrun slush product in a pressurized system from this modular, counter-top freezer. Optional nonpressurized system produces a wetter, lower overrun slush. Air is discharged out the top of the unit to accommodate tight counter space. Optional cart converts the unit to a self-contained floor model, and provides storage for the syrup.

Freezing Cylinder

Four, 7 quart (6.6 liter).

Dispensing Door

Clear plastic dispensing doors allow customers to see slush being made. Self closing draw handles are standard. Round dispensing nozzle conveniently fits the hole in domed lids.

Indicator Lights/Audible Alarm

Lights illuminate and audible alarm sounds to indicate loss of CO2, water or syrup on the affected freezing cylinder. The other flavors will continue to operate when one loses syrup. A snooze feature may be activated to silence the alarm for 30 minutes.

Automatic Defrost

Programmable defrost cycles allow the operator to select the time and frequency for defrosting each freezing cylinder independently. The defrost light flashes to warn customers not to draw product from the side that is being defrosted. At the end of the defrost cycle, the freezing cylinder automatically returns to the freeze-down mode.

Power Saver

During extended no-use periods, the Power Saver feature may be programmed for either Standby or Rest Mode. Standby Mode maintains product in freezing cylinder between 35 & 40°F (1.6 & 4.4°C) for quickest return to serving product. Rest Mode shuts down the refrigeration system for the most energy savings. Start and end times may be programmed independently for seven cycles.

Sure SetTM Flow Control

Automatically maintains brix settings by compensating for fluctuations in water, CO2, and syrup pressures. Water flow is preset at the factory.

Electronic Viscosity Control

SlushtechTM is standard with our exclusive microprocessor based universal control which regulates refrigeration by measuring product viscosity.

Air Filter

Removable, cleanable air filter helps keep condenser clean for optimal refrigeration system performance.

Merchandising

Lighted display backlights translight and illuminates clear dispensing doors draws customer attention.

Preventative maintenance programs are available through your local Taylor distributor.

Continuing research results in steady improvements; therefore, these specifications are subject to change without notice.

Taylor C302 Frozen Carbonated Beverage (FCB) Freezer Specifications

Electrical

One dedicated electrical connection is required. See the Electrical chart for the proper electrical requirements. Manufactured to be permanently connected. Consult your local Taylor distributor for cord & receptacle specifications as local codes allow.

Beater Motor

Two, 1/4 HP.

Refrigeration System

Two, 18,000 BTU/hr compressor (nominal rating). R404A.

(Actual BTUs will vary based on application.)

Carbonation System

Self-contained carbonation system. Syrup, CO2(1/4” MFL) and water (3/8” MFL) fittings connect at the rear of the machine.

Potable Water Pressure

Minimum 25 PSI for proper operation of carbonation system.

Air Cooled

Minimum Clearance: 3” (76 mm) around all sides, and 12” (305 mm) on the top of the unit. Minimum air clearances must be met to assure adequate air flow for optimum performance.

Water Cooled

Water inlet and drain connections at rear 3/8” FPT provided.

Taylor C302 Frozen Carbonated Beverage (FCB) Freezer Options

  • Flush Display to match C300 height
  • Syrup Tank Fittings
  • Syrup Storage Cart: Includes shelves for storing BIB FCB syrups and mounting BIB pumps (not included).

Dimensions

Width: 30” (762 mm)

Depth: 35” (889 mm)

Two Heights Available: 32-1/8” (816 mm) or 25-1/2” (648 mm)

Weights

Net: 117 lbs. (53.1 kg) 142 lbs. (64.4 kg)

Model 342 – Frozen Uncarbonated Beverage (FUB) Freezer – Two Flavors

2020-08-01T12:11:22-04:00August 15th, 2016|Categories: Slush FCB Equipment|

Model 342

Taylor-logo

Vary your menu by offering smoothies or frozen cocktails, fruit juices, coffees, cappuccino and tea slush beverages, all served at the desired thickness with the Taylor 342 FUB Freezer.

Download Specifications

For more information, call us at 1-800-768-6945 or

Send us an Email Now

Taylor 342 Frozen Uncarbonated Beverage (FUB) Freezer Two Flavor Features

Vary your menu by offering smoothies or frozen cocktails, fruit juices, coffees, cappuccino and tea slush beverages, all served at the desired thickness.

Freezing Cylinder

Two, 7 quart (6.6 liter).

Mix Hopper

Two, 20 quart (18.9 liter). Optional refrigerated hopper approved for dairy products.

Indicator Light

Add Mix light alerts the operator to add mix.

Automatic Consistency Control

A specially designed viscosity control automatically maintains superior product quality. Adjustable control allows the operator to serve a wide variety of frozen beverages at the desired thickness.

Taylor 342 Frozen Uncarbonated Beverage (FUB) Freezer Two Flavor Specifications

Electrical

Two dedicated electrical connections are required. See the Electrical chart for the proper electrical requirements. Manufactured to be permanently connected. Consult your local Taylor distributor for cord & receptacle specifications as local codes allow.

Beater Motor

Two, 1/4 HP

Refrigeration System

Two, 7,500 BTU/hr. R404A.

(BTUs may vary depending on compressor used.)

Air Cooled

Minimum 3” (76 mm) around all sides. Install the deflector provided to prevent recirculation of warm air. Minimum air clearances must be met to assure adequate air flow for optimum performance.

Water Cooled

Water inlet and drain connections under side of base 1/2” FPT.

Taylor 342 Frozen Uncarbonated Beverage (FUB) Freezer Options

  • Available as Model 342D, with Refrigerated Hopper, 1/2 HP Beater Motor, Beater Cycle Timer. Maintains mix below 41ºF (5ºC). Approved for dairy and non-dairy products.
  • Remote Auto Fill System
  • Syrup Jars and Brackets

Continuing research results in steady improvements; therefore, these

specifications are subject to change without notice.

Model 340 – Frozen Uncarbonated Beverage Freezer – Single Flavor

2020-04-10T20:07:32-04:00August 15th, 2016|Categories: Slush FCB Equipment|

Model 340

Taylor-logo

Vary your menu by offering smoothies or frozen cocktails, fruit juices, coffees, cappuccino and tea slush beverages, all served at the desired thickness.

Download Specifications

For more information, call us at 1-800-768-6945 or

Send us an Email Now

Model 432 – Frozen Uncarbonated Beverage Freezer – Two Flavors

2020-04-10T20:09:33-04:00August 15th, 2016|Categories: Milkshake, Slush FCB Equipment|

Model 432

Taylor-logo

Vary your menu by offering shakes & smoothies or frozen cocktails, fruit juices, coffees, cappuccino and tea slush beverages, all served at the desired thickness.

Download Specifications

For more information, call us at 1-800-768-6945 or

Send us an Email Now

Model 390 – Frozen Uncarbonated Beverage Freezer – Single Flavor

2020-04-10T20:10:40-04:00August 15th, 2016|Categories: Slush FCB Equipment|

Model 390

Taylor-logo

Best Seller!

We recommend this single flavor unit for customers with medium volume who have staff available to keep machine filled.

 Download Specifications

For more information, call us at 1-800-768-6945 or

Send us an Email Now

Model 428 – Frozen Beverage Freezer – Single Flavor

2020-04-10T20:04:01-04:00August 15th, 2016|Categories: Slush FCB Equipment|

Model 428

Taylor-logo

Vary your menu by offering shakes & smoothies or frozen cocktails, fruit juices, coffees, cappuccino and tea slush beverages, all served at the desired thickness. Optimized refrigeration system offers efficient operation in an extremely quiet, compact, self-contained freezer.

Download Specifications

For more information, call us at 1-800-768-6945 or

Send us an Email Now

Model 430 – Shake Freezer – Single Flavor

2021-08-31T13:07:53-04:00August 15th, 2016|Categories: Milkshake, Slush FCB Equipment|

Taylor 430 Single Flavor Shake Freezer

Taylor-logo

Best Seller!

Vary your menu by serving shakes & smoothies or frozen cocktails, fruit juices, frozen coffees or cappuccino or tea slush beverages all served at the desired thickness with the Taylor 430 single flavor shake freezer.

Download Specifications

For more information, call us at 1-800-768-6945 or

Send us an Email Now

Taylor 430 Frozen Beverage Freezer Single Flavor Features

Vary your menu by offering shakes & smoothies or frozen cocktails, fruit juices, coffees, cappuccino and tea slush beverages, all served at the desired thickness.

Freezing Cylinder

One, 4 quart (3.8 liter).

Mix Hopper

One, 14 quart (13.2 liter). Refrigerated to maintain mix below 41ºF (5ºC). Approved for dairy and non-dairy products.

Indicator Lights

Add Mix light alerts the operator to add mix. When the Mix Out light flashes, the unit automatically shuts down to prevent damage.

Automatic Consistency Control

A specially designed viscosity control automatically maintains superior product quality. An adjustable control allows the operator to serve a wide variety of frozen beverages at the desired thickness.

Taylor 430 Frozen Beverage Freezer Single Flavor Specifications

Electrical

One dedicated electrical connection is required. See the Electrical chart for the proper electrical requirements. Manufactured to be cord connected.

Consult the international Taylor distributor for cord & receptacle specifications for 50 Hz. equipment.

Refrigeration System

One, approximately 4,000 BTU/hr compressor. R404A. (BTUs may vary depending on compressor used.)

Beater Motor

One, 1/4 HP.

Air Cooled

Minimum Clearance: 3” (76 mm) on both sides. It is recommended to place the rear of the unit against the wall. Minimum air clearances must be met to assure adequate air flow for optimum performance.

Water Cooled

Water inlet and drain connections out of rear 3/8” FPT.

Options

  • Flavor Burst Connection
  • Graphic Panel Decals
  • Panel Spinner
  • Set of Four Flavor Cards; Frozen Drinks, Frozen Fruit Drinks,
  • Frozen Cocktails, Smoothies

Model C300 – Frozen Carbonated Beverage Freezer

2020-04-10T20:02:08-04:00August 12th, 2016|Categories: Slush FCB Equipment|

model C300

Taylor-logo

Best Seller!

Dispense a light, fluffy, high overrun slush product in a pressurized system from this modular, countertop freezer. Optional cart converts the unit to a self-contained floor model, and provides storage for the syrup.

Download Specifications

For more information, call us at 1-800-768-6945 or

Send us an Email Now
